14702030
FB1294
New product

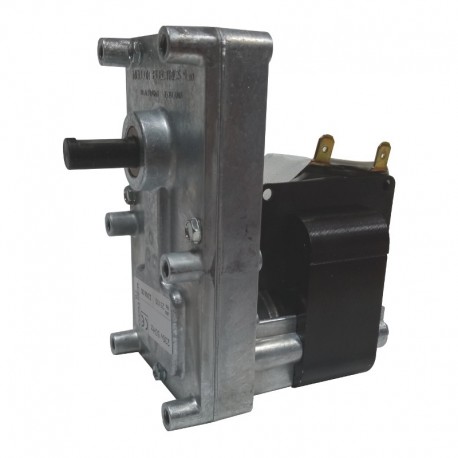

Mellor FB1294 gear motor
Speed: 2 rpm.
Magnetic core: 26 mm.
Shaft diameter: 9.5 mm.
Shaft Milling: single.
Rotation: clockwise.
Output torque: 26 Nm.
With encoder
14702030
Mellor FB1294 gear motor
Speed: 2 rpm.
Magnetic core: 26 mm.
Shaft diameter: 9.5 mm.
Shaft Milling: single.
Rotation: clockwise.
Output torque: 26 Nm.
With encoder
More info
Designed for low speed and high torque applications. FB1294 geared motor is suited to be used as rotor in pellet stoves.
T3 series, 26 Nm output torque, 18 Watt consumption, 2 rpm speed, clockwise rotation, 9.5 mm shaft diameter, 26 mm magnetic core, 220 V AC 50/60 Hz power supply.
Equivalente FB1179
For stoves
- CAMINETTI MONTEGRAPPA
