14702080
K9177280
New product

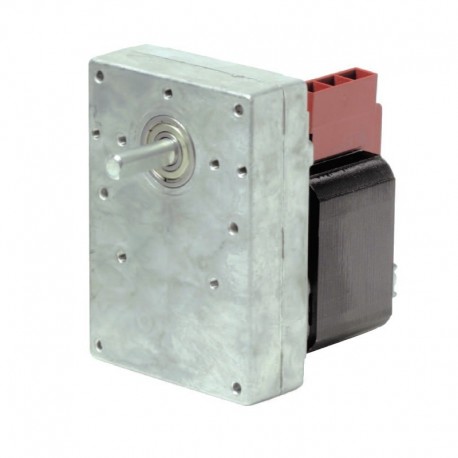

Kenta K9177280 gear motor
Speed: 3 rpm.

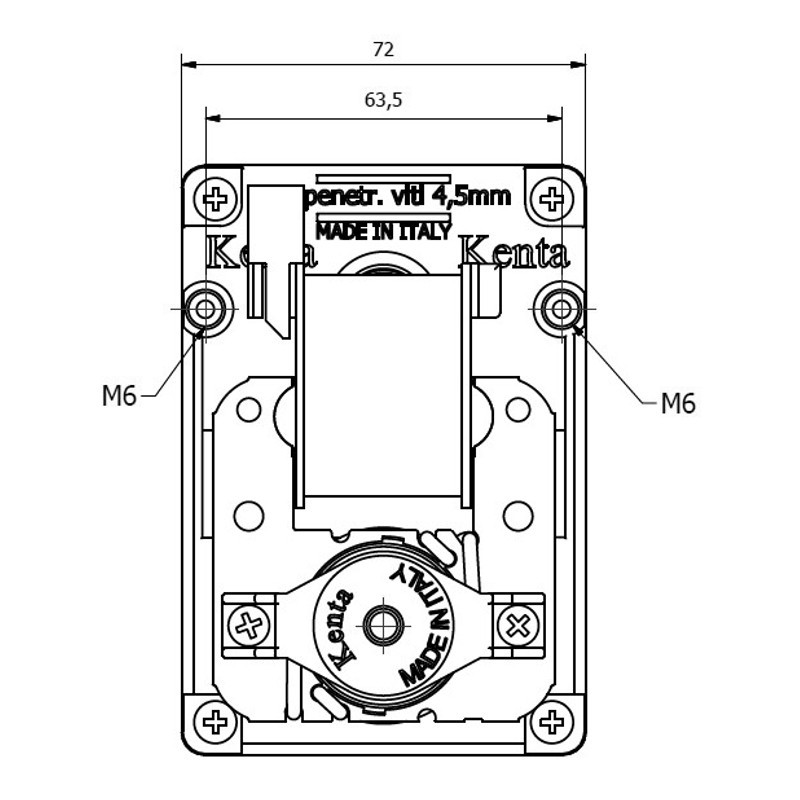

Magnetic core: 40 mm.

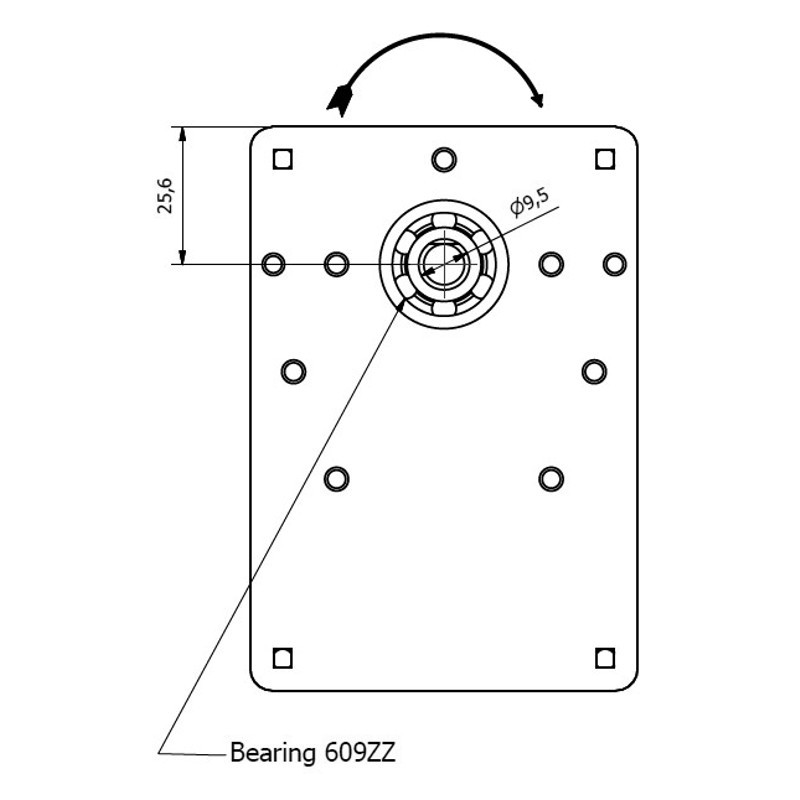

Shaft diameter: 9.5 mm.
Shaft Milling: single.
Rotation: clockwise.
Output torque: 30 Nm.
14702080
Kenta K9177280 gear motor
Speed: 3 rpm.
Magnetic core: 40 mm.
Shaft diameter: 9.5 mm.
Shaft Milling: single.
Rotation: clockwise.
Output torque: 30 Nm.
More info
Designed for low speed and high torque applications. Kenta K9177280 geared motor is suited to be used as rotor in pellet stoves.
917 series, 30 Nm output torque, 32 Watt consumption, 3 rpm speed, clockwise rotation, 9.5 mm shaft diameter, 40 mm magnetic core, 220 V AC 50/60 Hz power supply.
For stoves
- ARCE ref. 1611909494 mod. Circle - Circle Canalizzata - Circle Canalizzata Plus - Circle Idro Large - Circle Idro Medium - Circle Idro Small - Circle Plus - Hetna - Hetna Plus - Lexia - lexia Plus
- BIOECOTERMO
