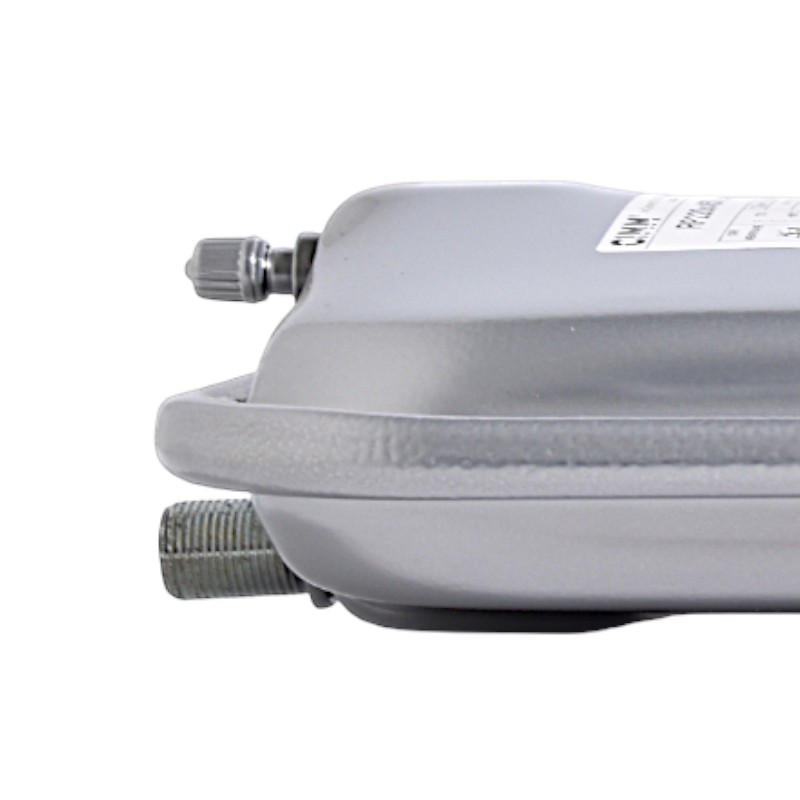

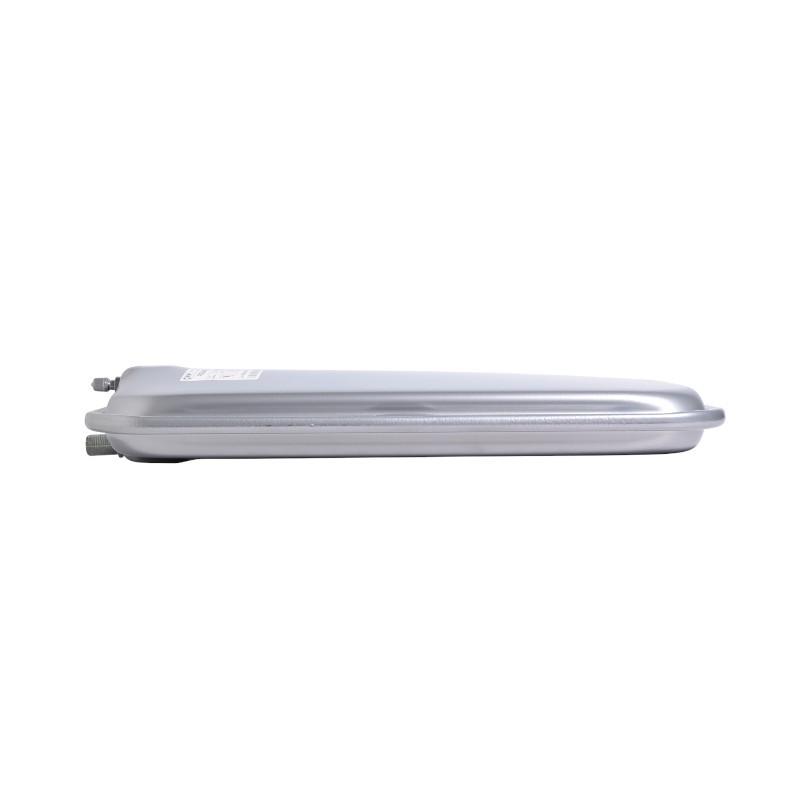

CIMM RP220x450/6 Expansion vessels
Capacity: Liters 6
Dimension IxL: 220x450 mm
Height: 68 mm
Water entry connection: M 3/8” Gas
Standard pre-loading pressure: 1,0 Bar
Maximum working pressure: 3,0 Bar
Working temperature: -10 +90 °C
External finishing colour: Grey
14815006
CIMM RP220x450/6 Expansion vessels
Capacity: Liters 6
Dimension IxL: 220x450 mm
Height: 68 mm
Water entry connection: M 3/8” Gas
Standard pre-loading pressure: 1,0 Bar
Maximum working pressure: 3,0 Bar
Working temperature: -10 +90 °C
External finishing colour: Grey
More info
CIMM RP220x450/6 - 9206 flat expansion tank for closed circuits.
Rubber diaphragm fixed membrane.
Produced according to the standards established by PED 2014/68/UE and DIN EN 13831 regulations, quality certified and guaranteed by international regulations.
Epoxy powder exterior painting to guarantee a high level of protection against oxidation and a fine aesthetic final quality.
