14703000
28FR500
New product

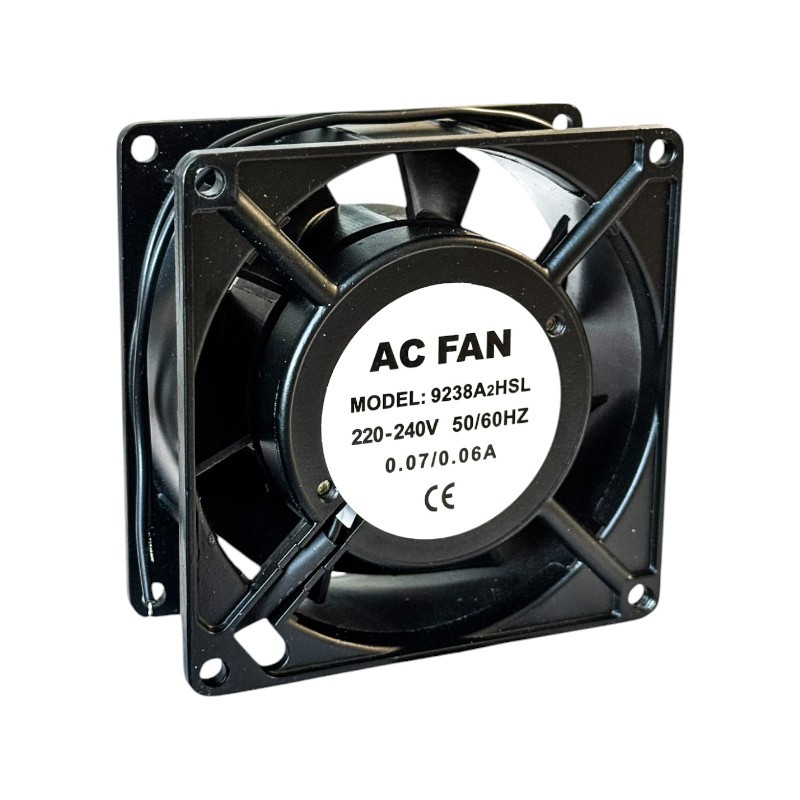

Axial Fan with die-casting aluminium frame.
Power supply range: 220-240 V AC 50/60 Hz

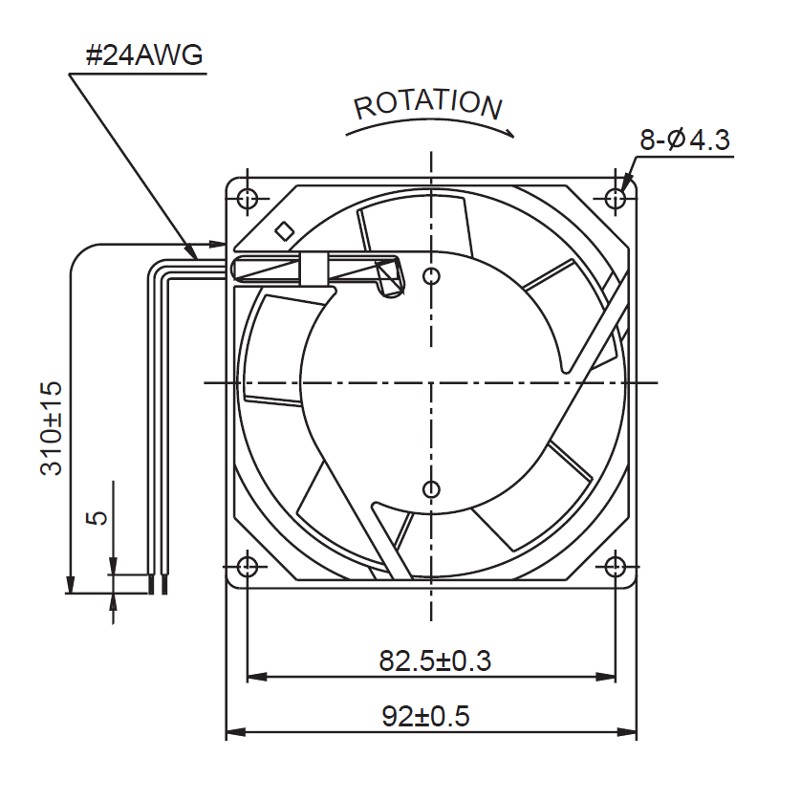

Dimensions: 92x92x38 mm
Power consumption: 16 Watt
Airflow range: 44/48 CMF
Revolution speed: 2300/2500 RPM
Weight: 360 gr.
Noise range: 40/46 dBA
14703000
Axial Fan with die-casting aluminium frame.
Power supply range: 220-240 V AC 50/60 Hz
Dimensions: 92x92x38 mm
Power consumption: 16 Watt
Airflow range: 44/48 CMF
Revolution speed: 2300/2500 RPM
Weight: 360 gr.
Noise range: 40/46 dBA
More info
Extremely compact axial fan, 92x92x38mm dimensions, with a die-cast aluminium frame and a weight of only 360gr.
It develops high airflows and a very low noise: 40/46dBA.
The 44/48CFM airflow, that the fan blades produce, is parallel to the rotation shaft.
220-240 VAC 50/60 Hz power supply, 16W power consumption, 2300/2500 RPM revolution speed.
For stoves
- EDILKAMIN ref. 207790 Mod. Ecostar Curva - Ecostar Piana - Ecostar Prismatica
